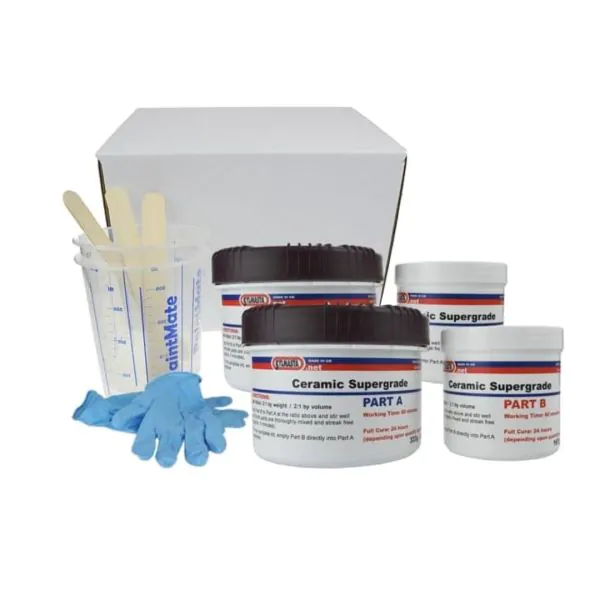

Sylmasta Sylmasta Ceramic Supergrade Abrasion Resistant Epoxy Paste

The Sylmasta Ceramic Supergrade Abrasion Resistant Epoxy Paste is a high-performance repair solution designed specifically for maintenance professionals dealing with harsh industrial environments. Engineered for durability, this two-part epoxy is filled with silicon carbide, delivering exceptional abrasion resistance while maintaining a low-friction surface finish. This makes it especially suitable for applications where surfaces experience constant wear or movement, such as in silos, chutes, mills, pumps, metal castings, and tanks.

The epoxy paste is designed to withstand continuous exposure to abrasive materials, harsh chemicals, and moisture, ensuring reliable, long-term protection. The smooth, trowel-applied consistency makes it easy to apply, even on vertical or overhead surfaces, while its thixotropic nature prevents sagging during application. Once cured, it forms a dense, hard coating that resists impact and corrosion, helping to extend the lifespan of critical equipment and structures.

Ideal for both emergency repairs and planned maintenance, Sylmasta Ceramic Supergrade Epoxy Paste not only restores damaged surfaces but also reinforces them, reducing future maintenance needs. Whether used in manufacturing plants, processing facilities, or heavy industrial settings, it delivers consistent performance and protection, even under extreme operating conditions.

Data Sheet

Key Features

• High Abrasion Resistance:
  Formulated with silicon carbide for enhanced surface hardness, ensuring durability in abrasive environments.
• Low Friction Surface Finish:
  Provides a smooth, low-friction coating to reduce wear from moving parts.
• Moisture Tolerant:
  Can be applied in environments with residual moisture, maintaining strong adhesion.
• Easy Application:
  Thixotropic consistency prevents sagging, allowing for vertical and overhead application.
• Temperature Resistant:
  Withstands service temperatures up to 266°F (130°C) when properly post-cured.
• Chemical and Corrosion Resistance:
  Protects surfaces from chemical exposure, corrosion, and abrasion, prolonging equipment life.


Recommended Applications

The Sylmasta Ceramic Supergrade Epoxy Paste is suitable for a wide range of industrial and maintenance applications, including:

• Heavy Equipment Repair:
  • Silos, chutes, mills, and metal castings
  • Pumps, impeller blades, and fan housings
  • Valves and pipework exposed to abrasion or corrosion
• Surface Protection:
  • Coating metal surfaces prone to wear
  • Protecting components from chemical attack
• Maintenance:
  • • Repairing damaged areas prone to abrasion
    • Restoring equipment used in harsh industrial environments
  📊

  Complete Technical Specifications – Ceramic Supergrade

  A blue, two-part, silicon carbide-filled epoxy paste providing ultimate abrasion resistance and low friction performance for industrial maintenance and repair.

  💪
  14,500 psi Compressive Strength

  🌡️
  266°F Max Service Temp

  ✓
  Shore D 90 Hardness

  ⏱️
  60 min Gel Time

  Mechanical Properties: Superior strength characteristics for demanding industrial applications

  Property	Value	Notes
  Compressive Strength	14,500 psi (100 MPa)	Full cure
  Tensile Strength	4,350 psi (30 MPa)	Full cure
  Flexural Strength	10,150 psi (70 MPa)	Full cure
  Lap Shear (Steel)	2,030 psi (14 MPa)	Bond strength

  Physical Properties: Silicon carbide reinforced for ultimate surface hardness

  Property	Value
  Hardness (Shore D)	90
  Density	0.058 lb/in³ (1.6 g/cm³)
  Shrinkage	<1%
  Non-Volatile Content	100%

  Temperature & Curing Data: Post-cure for maximum heat resistance

  Parameter	Room Temp Cure	Post Cured
  Heat Distortion Temp	133°F (56°C)	212°F (100°C)
  Max Service Temp	266°F (130°C)
  Application Temp Range	55°F – 126°F (13°C – 52°C)
  Full Cure Time	24 hours

  Mixing & Application: Easy trowel application with long working time

  Parameter	Value
  Mix Ratio (Weight)	2:1
  Mix Ratio (Volume)	2:1
  Gel Time	60 minutes
  Shelf Life	24 months @ 75°F (24°C)

  Download the Datasheet
  Call Now!

  ✓
  High Abrasion Resistance

  ✓
  Low Friction Surface

  ✓
  Moisture Tolerant

  ✓
  Easy Trowel Application

  ✓
  Non-Sagging (Thixotropic)

  ✓
  Virtually Odorless

  Typical Applications: Silos, chutes, mills, pumps, impeller blades, valves, fan blades, metal castings, and tanks. Suitable for metal, wood, and most plastics.

Frequently Asked Questions

1. What is the recommended application method for Ceramic Supergrade Epoxy Paste?
   Apply using a putty knife or trowel. Ensure the surface is clean, dry, and roughened for optimal adhesion. Press firmly to eliminate air pockets.
2. How do I prepare the surface before application?
   Remove all paint, rust, and grease. Abrasive blasting or sanding is recommended to achieve a rough profile. Clean with a solvent to remove residues.
3. What is the recommended post-curing procedure?

• Cure at room temperature for 24 hours.
• Heat at 176°F (80°C) for 2 hours.
• Increase to 302°F (150°C) for 3 hours.
• Allow the material to cool naturally.

4. Can the product be applied in cold conditions?
   Yes, but preheat the substrate to 98–109°F (37–43°C) to remove moisture and ensure optimal adhesion.
5. What is the mix ratio for the epoxy?
   The mix ratio by weight is 2:1, and by volume, it is also 2:1. Mix thoroughly to achieve a uniform consistency.
6. What is the typical cure time?
   The epoxy reaches full cure within 24 hours at room temperature. A gel time of 60 minutes allows for manageable application.
